GF-SLIDER

SYSTEM

Redefining what a Slider should be.

Quiet, smooth and stable, high precision rails

Low profile (can be operated on the ground)

7 rail lengths to choose from

Interchangeable rails drilled with 3/8” holes 1” apart allowing easy accessory attachment

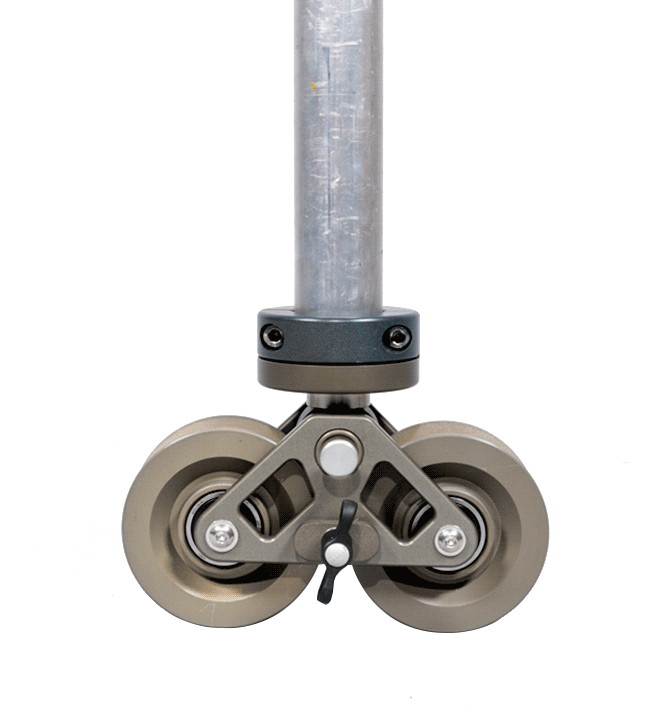

Tracking carriage for Mitchell, bowl or Euro-adapter mounts

Euro-adapter or Mitchell base mount

Adjustable side plates for repositioning on rails

Additional height adjusters for height extension of the camera mount

End mount adapters (scaffold, lighting stand, levelling legs)

Bangi mode (for off-set panning and table top or tight tracking shots)





1 SYSTEM – 7 LENGTHS

The GF-SLIDER SYSTEM is available in 7 standard lengths. Each basic Slider package includes: 2 precision rails, 2 end mounts with 360° »tooth system« and the tracking carriage with 2 low height adjusters.
Additional, interchangeable rails drilled with 3/8” holes 1” apart are available.
300 cm / 9'10"
60 cm / 2'
70 cm / 2'4"
100 cm / 3'3"
120 cm / 4'
200 cm / 6'7"
250 cm / 8'2"

CARRIAGE MOUNTS

The tracking carriage will accept Bowl, Mitchell and the 80 mm Euro-adapter tube mount. Machining the individual adapters and plates from solid blocks of aluminium ensures a solid, long lasting camera mount.

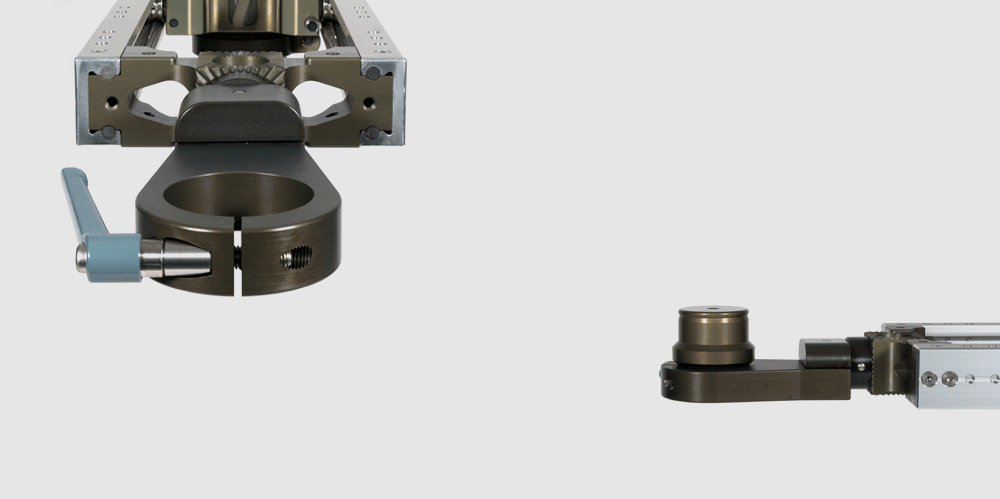

BASE MOUNTS

There is a choice of mounts to connect the GF-Slider directly on to a Mitchell or Euro-adapter type dolly mount. The Euro-adapter mount includes a pan bearing and medium height side plates. The Mitchell mounts are available with or without a pan-bearing for direct connection to the rails. Optional side plates are available to allow for faster horizontal repositioning of the Slider.



SIDE PLATES FOR HORIZONTAL POSITIONING

The side plates, combined with the base mounts, provide a way to quickly reposition the Slider and shift it off-centre. Because of the different sizes, they also offer a second method to adjust height and therefore provide more clearance of the camera head between the tracking carriage and the rail mount.

CARRIAGE HEIGHT EXTENDERS

The tracking carriage will accept Bowl, Mitchell and the 80 mm Euro-adapter tube mount. Machining the individual adapters and plates from solid blocks of aluminium ensures a solid, long lasting camera mount.

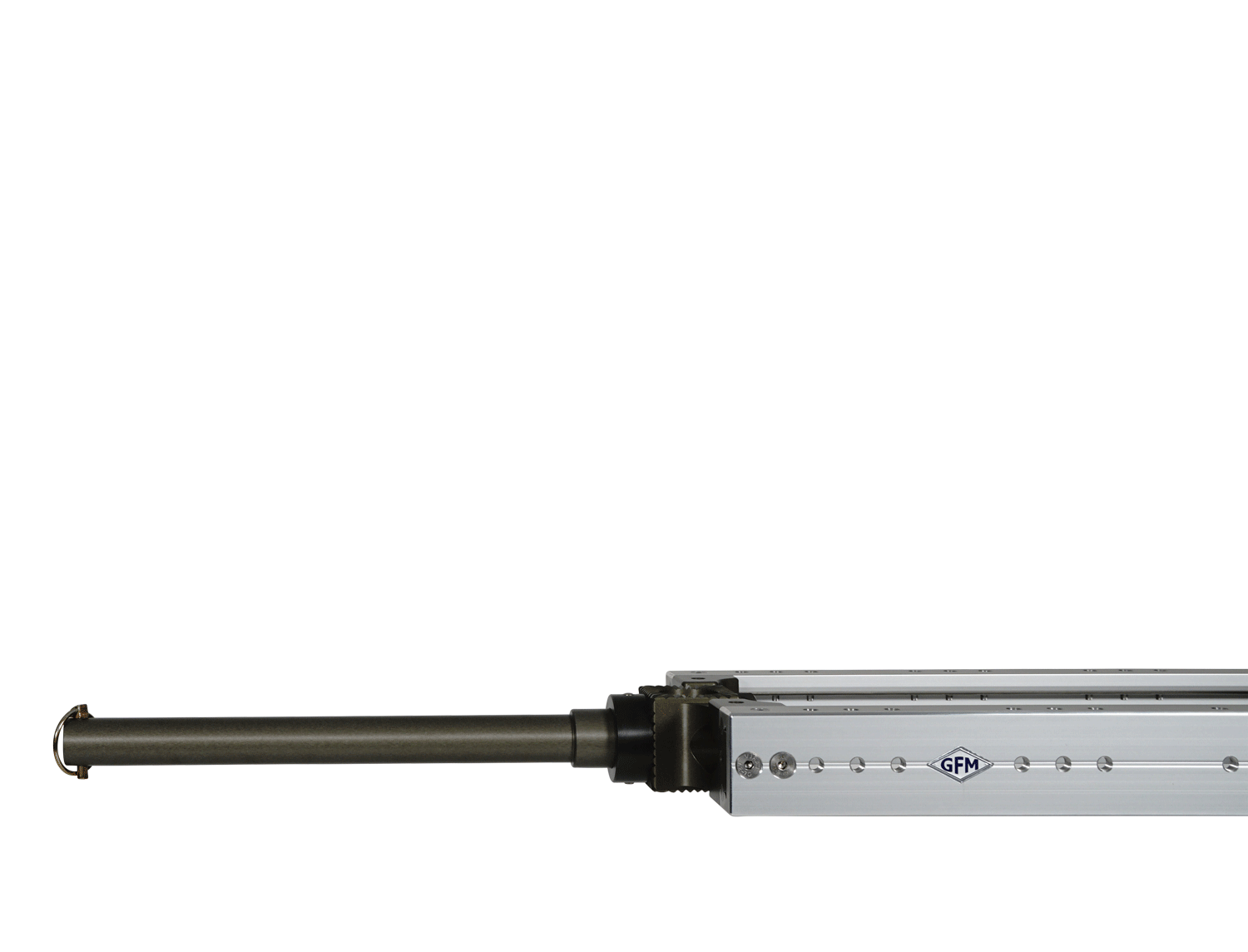

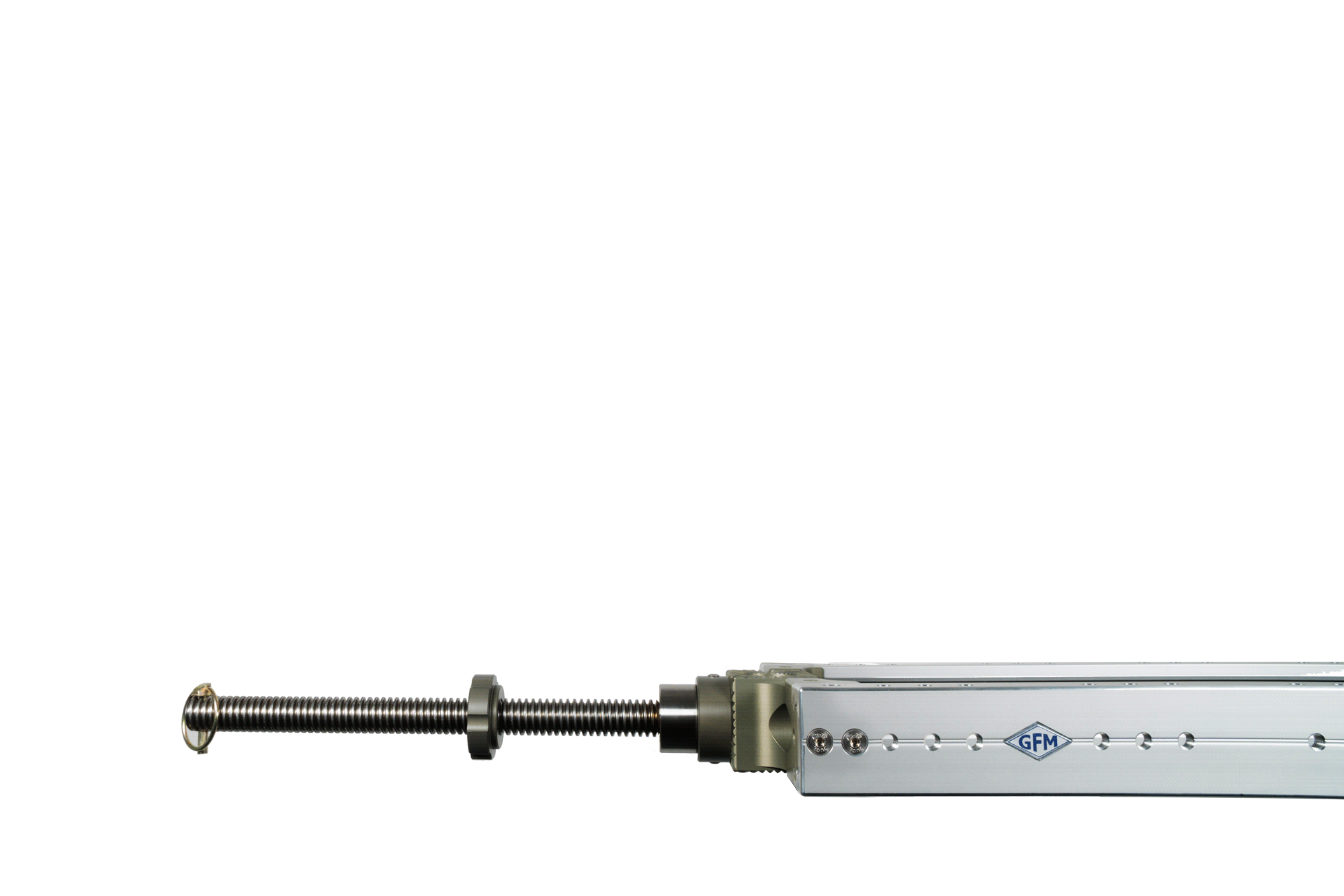

END MOUNTS

The standard end mount is machined with a 360 degree »tooth system« allowing for the connection of various scaffold tubes and levelling leg mounts. It also has a number of 3/8” threaded holes for connecting adapters etc.


MAGNETIC END STOPS

GF-SLIDER IN

BANGI MODE

The GF-Slider also functions as a traditional »Bangi«. It enables off-set panning and camera tracking for table top shots or to track the camera in and out of tight spaces such as windows, car doors etc.


GF-SLIDER ON SET
